MTV1 SISU motor torpedo boats (1918/1920)
MTV2
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MTV1 (ex-MAS220), 1930s- Sisu MTV2 (ex-MAS221), 1930s- Hurja |
Orlando, Leghorn, Italy: MTV1, 2 |
1918 // 1920: MTV1, 2 |
none |
none |
1941: Hurja 1942: Sisu |
Technical data
| Displacement normal, t | 12.9 |
|---|---|
| Displacement full, t |
|
| Length, m | 16.4 |
| Breadth, m | 2.80 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 Isotta Fraschini petrol engines / 2 Rognini electric motors |
| Power, h. p. | 500 / 10 |
| Max speed, kts | 26.5 / 4 |
| Fuel, t | petrol |
| Endurance, nm(kts) | 150(26) |
| Armament | 2 x 1 - 7.6/94, 2 - 450 TT |
| Complement | 8 |
Standard scale images

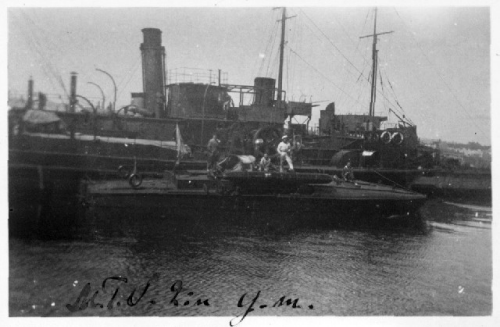

MTV1 1920
Graphics
MTV2
Project history
Built by Orlando for Italian Navy, bought by Finns in 1920. Wooden-hulled. Differed by bad seaworthiness, by 1940 speed was limited by 22kts.
Modernizations
None.
Naval service
No significant events.
