FIGHTING SHIPS OF THE WORLD
DOMINICAN REPUBLIC
COASTAL FORCES
HAMAL patrol launches (2004-2005)
Vega 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LR151 Hamal LR152 Vega LR153 Deneb LR154 Acamar |
Astilleros Navales de la Bahia de las Calderas, Punta Salinas: LR151-154 |
2004: LR151, 152 2005: LR153, 154 |
LR152 Vega (cyclone 2.2011) |
none |
in service (2019): LR151, 153, 154 |
Technical data
| Displacement standard, t | 16 |
|---|---|
| Displacement full, t | |
| Length, m | 15.1 |
| Breadth, m | 4.50 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 2406 diesels |
| Power, h. p. | 1800 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | nav. radar |
| Complement | 6 |
Graphics

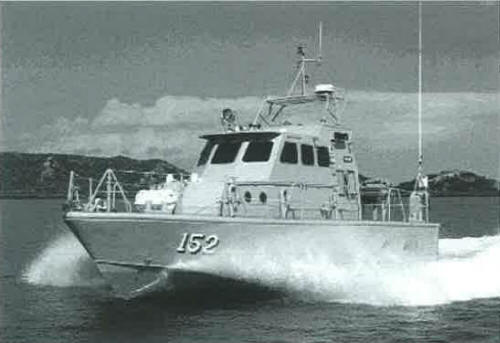

Vega 2006
Project history
Damen Stan Patrol 1505 class. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
