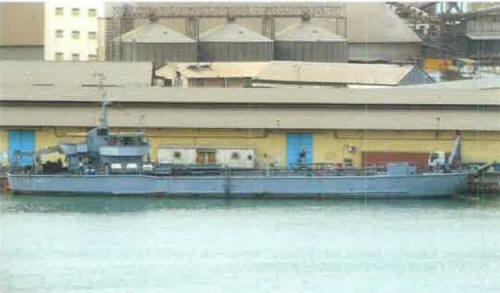

ex-DAGUE utility landing craft (1987/2012)
2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| (ex-Dague, ex-L9052) | SFCN, Villeneuve-la-Garenne, France | 10.9.1987 | 19.12.1987 // 30.6.2012 | in service (2020) |
Technical data
| Displacement standard, t | 325 |
|---|---|
| Displacement full, t | 726 |
| Length, m | 55.9 pp 59.4 oa |
| Breadth, m | 11.9 |
| Draught, m | 1.40 hull 1.70 max |
| No of shafts | 2 |
| Machinery | 2 SACM UD30V12 MB diesels |
| Power, h. p. | 1400 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil 20 |
| Endurance, nm(kts) | 1000(10) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 210 t of cargo, 180 troops |
| Electronic equipment | Decca, Furuno radars |
| Complement | 17 |
Standard scale images
similar L9070 1990
Graphics
2013
Project history
Former French LCU of EDIC700 class.
Modernizations
None.
Naval service
No significant events.
