DJIBOUTI
COASTAL FORCES
P14 patrol launch (1970/2006)
P14 2009
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P14 (ex-CP238) |
CN Leopoldo Rodriguez, Messina, Italy: P14 |
1970 // 2006: P14 |
none |
none |
in service (2020): P14 |
Technical data
| Displacement standard, t | 14 |
|---|---|
| Displacement full, t | 16 |
| Length, m | 13.4 |
| Breadth, m | 4.80 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 AIFO 8281 SRM diesels |
| Power, h. p. | 900 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | none |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

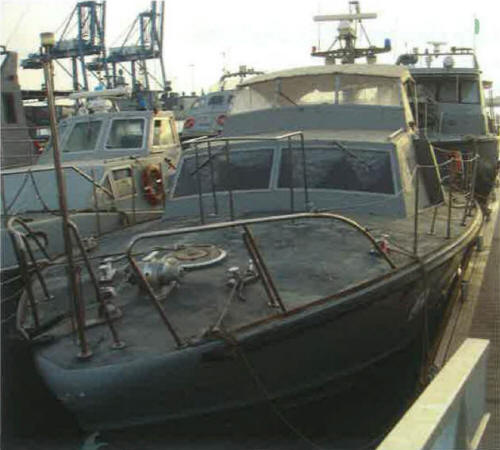

P14 2009
Project history
Former patrol launch of Italian Coast Guard. Wooden-hulled.
Modernizations
None.
Naval service
No significant events.
