MOUSSA ALI patrol boats (1985-1986)
Mont Arreh 1986
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P10 Moussa Ali P11 Mont Arreh |
Plascoa, Cannes, France: P10, 11 |
1985: P10 1986: P11 |
none |
none |
2001: P10 2011: P11 |
Technical data
| Displacement standard, t | 30 |
|---|---|
| Displacement full, t | 35 |
| Length, m | 23.3 |
| Breadth, m | 5.50 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 SACM-Poyaud V12-520 M25 diesels |
| Power, h. p. | 1700 |
| Max speed, kts | 24.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(12) |
| Armament | 1 x 1 - 20/90 F2, 1 x 1 - 12.7/90 |
| Electronic equipment | Decca 36MN radar |
| Complement | 15 |
Graphics

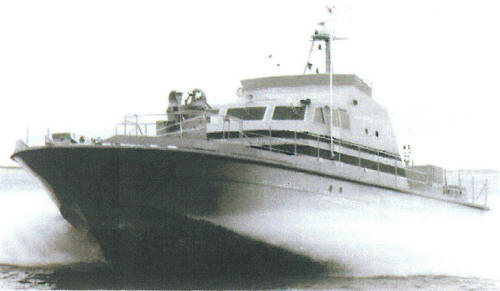

Mont Arreh 1986
Project history
GRP hull. Ordered in 1984 as a gift from France.
Modernizations
None.
Naval service
No significant events.
