DIANA patrol craft (2007-2009)

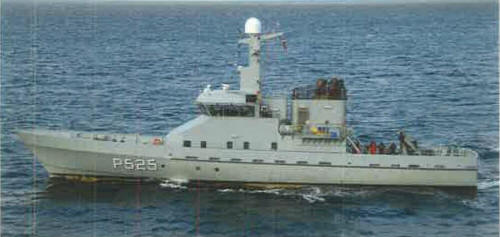

Rota 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Diana | P520 | Faaborg Værft | 27.10.2005 | 27.3.2006 | 6.11.2007 | in service (2019) | |
| Freja | P521 | Faaborg Værft | 29.8.2006 | 30.5.2008 | in service (2019) | ||
| Havfruen | P522 | Faaborg Værft | 29.11.2006 | 25.9.2008 | in service (2019) | ||
| Najaden | P523 | Faaborg Værft | 27.3.2007 | 11.12.2008 | in service (2019) | ||
| Nymfen | P524 | Faaborg Værft | 30.7.2007 | 4.5.2009 | in service (2019) | ||
| Rota | P525 | Faaborg Værft | 19.10.2007 | 12.12.2009 | in service (2019) |
Technical data
| Displacement standard, t | 186 |
|---|---|
| Displacement full, t | 232 |
| Length, m | 41.0 wl 43.0 oa |
| Breadth, m | 8.40 |
| Draught, m | 1.92 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB94 diesels |
| Power, h. p. | 5550 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700 |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno 2117 radar |
| Complement | 13 |
Standard scale images
Diana 2010
Graphics
Rota 2012
Project history
Ordered in 2004. GRP construction, built as replacement for Barsø class. Each ship has space for one Standard Flex container, allowing use the ship for fishery protection, patrol and search and rescue duties. Fast RIB can be launched via stern ramp. Hulls were formed by Kockums, Sweden. SVPC (FPV40) Fassmer design.
Modernizations
None.
Naval service
No significant events.
