FIGHTING SHIPS OF THE WORLD
COSTA RICA
COAST GUARD
ISLA DEL COCO patrol boat (1978)
Isla del Coco 1989
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Isla del Coco | 1055, 2001- 105-1 | Swiftships, Morgan City, USA | 2.1978 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 118 |
| Length, m | 31.7 |
| Breadth, m | 7.10 |
| Draught, m | 2.16 |
| No of shafts | 3 |
| Machinery | 3 MTU 12V331 TC92 diesels |
| Power, h. p. | 10500 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil 21 |
| Endurance, nm(kts) | 1200(18) |
| Armament | 1 x 1 - 12.7/90, 2 x 2 - 7.6/90, 1 x 1 - 60/11 mortar |
| Electronic equipment | radar |
| Complement | 14 |
Graphics

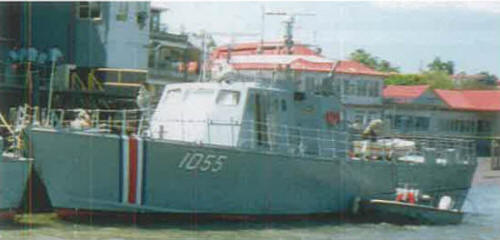

Isla del Coco 1989
Project history
US Swiftships 105ft Commercial Cruiser class.
Modernizations
None.
Naval service
No significant events.
