CONGO
COASTAL FORCES
05 FÉVRIER 1979 patrol craft (2010)
15 Août 1960 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 05 Février 1979 | P201 | Qionjan, Qingdao, China | 3.2010 | in service (2019) | |||
| 31 Juillet 1968 | P202 | Qionjan, Qingdao, China | 3.2010 | in service (2019) | |||
| 15 Août 1960 | P203 | Qionjan, Qingdao, China | 3.2010 | in service (2019) | |||
| 10 Juin 1991 | P204 | Qionjan, Qingdao, China | 3.2010 | in service (2019) |
Technical data
| Displacement standard, t | 203 |
|---|---|
| Displacement full, t | 247 |
| Length, m | 44.0 pp 46.8 oa |
| Breadth, m | 7.20 |
| Draught, m | 1.96 |
| No of shafts | 4 |
| Machinery | 4 MTU 16V2000 M90 diesels |
| Power, h. p. | 7200 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 1 x 1 - 30/77 PJ-17, 2 x 2 - 14.5/93 |
| Electronic equipment | JMA-5312, JMA-5106 radars |
| Complement | 26 |
Graphics

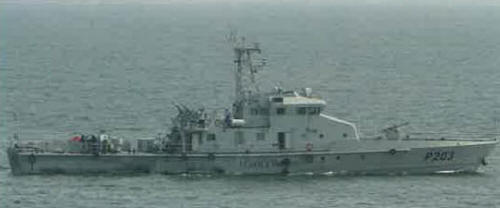

15 Août 1960 2013
Project history
New class.
Modernizations
None.
Naval service
No significant events.
