YUANZHENG 201 ballistic missile submarine (project 032, 2012)
.jpg)

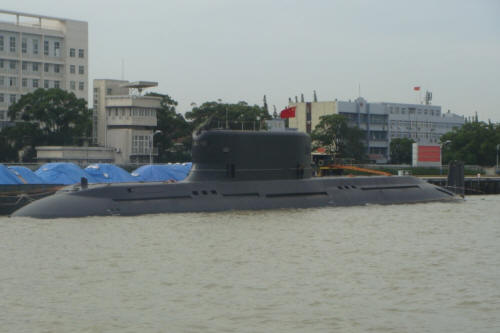

Yuangzheng 201 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 远征 201 [Yuangzheng 201] | 201 | Wuchang, Wuhan | 2008 | 9.9.2010 | 16.10.2012 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 3800 / 6630 |
| Length, m | 92.5 |
| Breadth, m | 10.0 hull |
| Draught, m | 6.85 |
| No of shafts | 1 waterjet |
| Machinery | diesel-generators, 1 electric motor |
| Power, h. p. | |
| Max speed, kts | 10 / 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 JL-2 (or 1 - 3 other models for test) SLBM (2), 1 x 4 CruM/SSM/ASuM (VLS, 4), 1 - 650 TT (bow), 1 - 533 TT (bow) |
| Electronic equipment | radar, sonars |
| Complement | 88 + up to 100 civil specialists |
| Diving depth operational, m | 160 |
Standard scale images
Yuangzheng 201 2015
Graphics
Yuangzheng 201 2012
Project history
Trials submarine, replacement for Russian-built project 629. SLBM tubes are placed in the sail, VLS for cruising and anti-ship missiles arranged in the forward hull part. Its planned that during wartime this submarine can operate as combat unit with JL-2 missiles.
Modernizations
None.
Naval service
No significant events.
