CHANGCHENG 364 submarines (project 877EKM, 1994-1995)

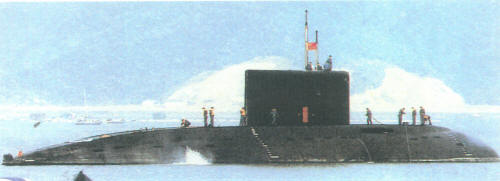

2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 长城 364 [Changcheng 364] (ex-B-185) | 364 | Krasnoye Sormovo, Nizhniy Novgorod, Russia | 23.3.1989 | 31.5.1994 | 15.11.1994 // 15.12.1994 | in service (2019) | |
| 长城 365 [Changcheng 365] (ex-B-188) | 365 | Krasnoye Sormovo, Nizhniy Novgorod, Russia | 18.11.1990 | 31.3.1995 | 15.8.1995 // 5.9.1995 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 2325 / 3075 |
| Length, m | 72.6 |
| Breadth, m | 9.90 hull 12.8 max |
| Draught, m | 6.60 |
| No of shafts | 1 pr. 877V: 1 waterjet |
| Machinery | 2 4DL-42M diesel-generators, 1 PG-141 electric motor / 1 PG-142 electric motor for crouching |
| Power, h. p. | 4080 / 5500 / 150 |
| Max speed, kts | 10.7 / 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6880(7) / 400(3) |
| Armament | 6 - 533 TT (bow, 18 or 24 mines), 1 x 8 Igla-1 SAM (8 9M313) |
| Electronic equipment | MRK-50E Kaskad radar, MGK-400E Rubikon-E sonar suite, MG-519E Arfa-E, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25E ECM suite, MVU-110 Uzel CCS |
| Complement | 60 |
| Diving depth operational, m | 240 |
Standard scale images
Changcheng 364 2000
Graphics
2001
Project history
Russian Project 877EKM design, laid down for Soviet Navy but sold to China on the stocks and completed under Chinese funds.
Modernizations
None.
Naval service
No significant events.
