YUNG PING river gunboats (1929-1930/1945)

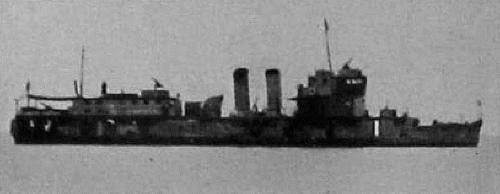

Yung Ping 1947
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 永平 [Yung Ping] (ex-熱海 [Atami]) | Fujinagata, Osaka, Japan | 11.1928 | 30.3.1929 | 6.1929 // 8.1945 | deleted 1960s | ||
| 永安 [Yung An] (ex-二見 [Futami]) | Fujinagata, Osaka, Japan | 6.1929 | 20.11.1929 | 2.1930 // 8.1945 | deleted 1960s |
Technical data
| Displacement standard, t | 206 |
|---|---|
| Displacement full, t | 249 |
| Length, m | 45.3 pp 46.3 oa |
| Breadth, m | 6.30 |
| Draught, m | 0.92 |
| No of shafts | 2 |
| Machinery | 2 2-cyl compound VE, 2 Kampon boilers |
| Power, h. p. | 1300 |
| Max speed, kts | 16.7 |
| Fuel, t | oil 53 |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 76/40 11-shiki, 3 x 1 - 25/60 96-shiki, 3 x 1 - 13.2/76 |
| Complement | 77 |
Standard scale images
Yung Ping 1945
Graphics
Yung Ping 1947
Project history
Former Japanese river gunboats, transferred to China after war.
Modernizations
None.
Naval service
No significant events.
