Hochun 1947

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
合彰 [He Zhang] (ex-LCT512)			Bison SB, North Tonawanda, USA			9.1943 // 1946	to Taiwan 7.1949 (合彰 [He Zhang])
(ex-LCT515)			Bison SB, North Tonawanda, USA			9.1943 // 1946	stricken 1986
合忠 [He Zhong] (ex-LCT849)			Kansas City Steel, USA			8.1944 // 1946	to Taiwan 7.1949 (合忠 [He Zhong])
合群 [He Qun] (ex-LCT892)			Darby Products, Kansas City, USA			7.1944 // 1946	to Taiwan 7.1949 (合群 [He Qun])
合城 [He Cheng] (ex-LCT1143)			Bison SB, North Tonawanda, USA			5.1944 // 1946	to Taiwan 7.1949 (合城 [He Cheng])
合貞 [He Zhen] (ex-LCT1145)			Bison SB, North Tonawanda, USA			5.1944 // 1946	to Taiwan 7.1949 (合貞 [He Zhen])
(ex-LCT1171)			Bison SB, North Tonawanda, USA			6.1944 // 1946	stricken 1986
合眾 [He Zhong] (ex-LCT1213)			Bison SB, North Tonawanda, USA			8.1944 // 1946	to Taiwan 7.1949 (合眾 [He Zhong])

Technical data

Displacement standard, t	160
Displacement full, t	309 - 320
Length, m	32.0 wl 36.3 oa
Breadth, m	9.96
Draught, m	at landing: 1.09 fore, 1.22 aft
No of shafts	3
Machinery	3 Grey Marine diesels
Power, h. p.	675
Max speed, kts	8
Fuel, t	diesel oil
Endurance, nm(kts)	700 (7)
Armament	2 x 1 - 20/70 Mk 10
Military load	4 medium or 3 heavy tanks or 150 t of cargo
Complement	13

Standard scale images

Graphics

Project history

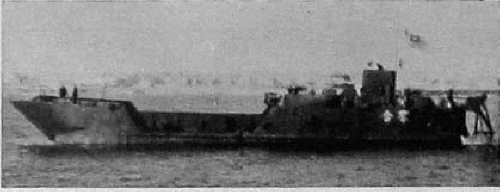

Former USN LCT(6) type, transferred to China after war. At least 15 craft of LCT(5) and LCT(6) types were transferred.

Modernizations

None.

Naval service

10 - 11 boats went to Communist Chinese government, 6 craft escaped to Taiwan in 1949.
