INGENIERO HYATT torpedo boats (1896-1898)





Ingeniero Hyatt 1900

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Cirujano Videla     Yarrow, Poplar, UK   1896 1896 stricken 1922
Ingeniero Mery     Yarrow, Poplar, UK   1896 1896 stricken 1922
Ingeniero Hyatt     Yarrow, Poplar, UK   1896 1896 stricken 1922
Teniente Rodriguez     Yarrow, Poplar, UK   1896 1896 stricken 1922
Ingeniero Mutilla     Yarrow, Poplar, UK   1898 1898 stricken 1922
Guardiamarina Contreras     Yarrow, Poplar, UK   1898 1898 stricken 1922


Technical data


Displacement normal, t140
Displacement full, t
Length, m

46.5
Breadth, m

4.65
Draught, m

2.36 max
No of shafts

1
Machinery

1 VTE, 2 Yarrow boilers
Power, h. p.

2200
Max speed, kts

26.5 - 27.5
Fuel, t

coal 40
Endurance, nm(kts)
Armament

3 x 1 - 47/40 Hotchkiss, 1 - 356 TT (bow), 1 x 2 - 356 TT
Complement16


Standard scale images


<i>Ingeniero Hyatt </i>1896
Ingeniero Hyatt 1896


Graphics

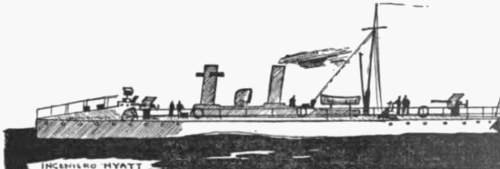

<i>Ingeniero Hyatt </i>1900
Ingeniero Hyatt 1900


Project history

Steel-hulled first class TB, with a turtleback forecastle and two funnels.

Modernizations

None.

Naval service

No significant events.
