PRESIDENTE ERRÁZURIZ protected cruisers (1892)

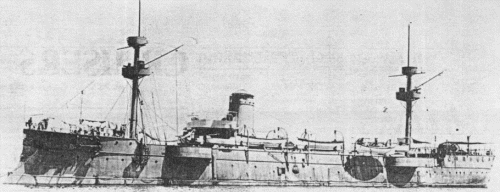

Presidente Pinto

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Presidente Errázuriz     F C de la Méditerranée, La Seyne, France 1889 21.6.1890 1892 gunnery TS 1919, discarded 1930
Presidente Pinto     F C de la Méditerranée, La Seyne, France 1889 4.9.1890 1.1892 discarded 1910


Technical data


Displacement normal, t2047
Displacement full, t
Length, m

81.8 pp

Breadth, m

10.9

Draught, m

4.39 mean

No of shafts

2

Machinery

2 HTE, 4 cylindrical boilers

Power, h. p.

5400

Max speed, kts

18.3

Fuel, t

coal 400

Endurance, nm(kts)
Armour, mm

Steel; deck: 35 - 25 with 60 - 35 slopes, shields: 90, CT: 50

Armament

4 x 1 - 150/36 Canet M1884, 2 x 1 - 120/36 Canet M1884, 4 x 1 - 57/40 Hotchkiss, 3 - 356 TT (1 bow, 1 beam)

Complement

170



Standard scale images


<i>Presidente Errázuriz </i>1914
Presidente Errázuriz 1914


Graphics


<i>Presidente Pinto</i>
Presidente Pinto


Project history

Wood- and copper-sheathed hull with raised forecastle and poop. 150mm guns were installed in sponsons and 120mm guns fore and aft.

Ship protection

Full length protective deck was 35mm at flat part and 60mm at slopes abreast machinery and 25mm at flat part and 35mm at slopes at ship ends.

Modernizations

1908, Presidente Errázuriz: boilers were replaced by 4 Belleville; - 4 x 1 - 150/36, 2 x 1 - 120/36; + 4 x 1 - 152/45 Armstrong KK, 2 x 1 - 120/45 Canet M1890

Naval service

By 1919 Presidente Errázuriz served as gunnery TS.
