REI patrol launch (2010)
Rei 2010
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Rei |
SAFE Boats, Port Orchard, USA: Rei |
2010: Rei |
none |
none |
in service (2020): Rei |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 13 |
| Length, m | 12.8 |
| Breadth, m | 4.10 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C9 diesels |
| Power, h. p. | 550 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(21) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno 1843C radar |
| Complement | 4 |
Graphics

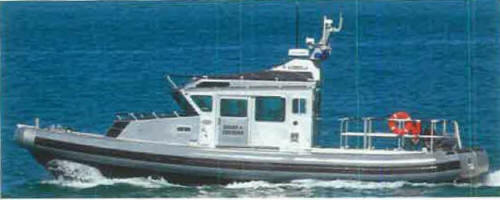

Rei 2010
Project history
Archangel class. Aluminium construction and foam collar.
Modernizations
None.
Naval service
: No significant events.
