LEONARD J. COWLEY patrol ship (1985)

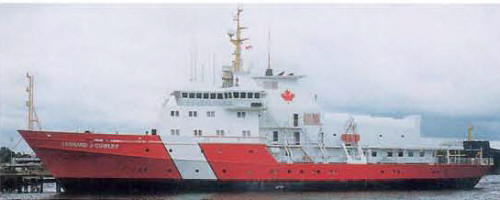

Leonard J. Cowley 1996

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Leonard J. Cowley     West Coast Manly SY, Vancouver 15.1.1984 24.10.1984 6.1985 Coast Guard 4.1995, in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Leonard J. Cowley     West Coast Manly SY, Vancouver 15.1.1984 24.10.1984 6.1985 Coast Guard 4.1995, in service (2019)

Technical data


Displacement standard, t1470
Displacement full, t2080
Length, m67.6 wl 72.0 oa
Breadth, m14.2
Draught, m4.51 mean
No of shafts

1
Machinery

2 Nohab-Wärtsilä F312A diesels
Power, h. p.4300
Max speed, kts

15
Fuel, t

diesel oil 340
Endurance, nm(kts)12000(12)
Armament

2 x 1 - 12.7/90 (fitted for), 1 helicopter (Bo-105CBS)
Electronic equipment2x Sperry 3400 radars
Complement19 + 21 passengers


Graphics


<i>Leonard J. Cowley </i>1996
Leonard J. Cowley 1996


Project history

Patrol ship of Department of Fisheries and Oceans. Two Zodiac RIBs and two workboats. Telescopic hangar.

Modernizations

None.

Naval service

No significant events.
