GORDON REID patrol ships (1991)





Gordon Reid 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Gordon Reid     Versatile Pacific, Vancouver     7.1991 Coast Guard 4.1995, in service (2019)
John Jacobson     Versatile Pacific, Vancouver     7.1991 Coast Guard 4.1995, deleted 2002


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Gordon Reid     Versatile Pacific, Vancouver     7.1991 Coast Guard 4.1995, in service (2019) John Jacobson     Versatile Pacific, Vancouver     7.1991 Coast Guard 4.1995, deleted 2002

Technical data


Displacement standard, t886
Displacement full, t1100
Length, m46.0 wl 50.0 oa
Breadth, m11.0
Draught, m5.20 max
No of shafts

2
Machinery

4 Deutz 628-SBV-6M diesels
Power, h. p.4800
Max speed, kts

17
Fuel, t

diesel oil 125
Endurance, nm(kts)2500(12)
Armament

2 x 1 - 12.7/90 (fitted for)
Electronic equipment2x Decca Bridgemaster radars
Complement14 + 8 passengers


Graphics

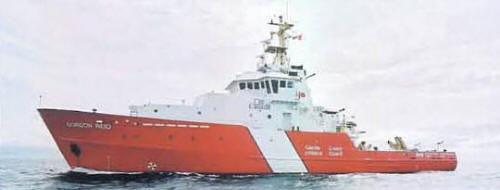

<i>Gordon Reid </i>2004
Gordon Reid 2004


Project history

Patrol ship of Department of Fisheries and Oceans. One Hurricane 733 fast RIB launched from stern ramp, one Zodiac RIB. 9t crane.

Modernizations

None.

Naval service

No significant events.
