CYGNUS patrol ship (1982)
Cygnus 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Cygnus | Marystown SY | 5.1982 | Coast Guard 4.1995, in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 1210 |
|---|---|
| Displacement full, t | 1461 |
| Length, m | 63.0 |
| Breadth, m | 14.6 |
| Draught, m | 3.80 |
| No of shafts | 2 |
| Machinery | 2 Nohab-Wärtsilä F30.12 diesels |
| Power, h. p. | 4700 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil 280 |
| Endurance, nm(kts) | 10800(13) |
| Armament | 2 x 1 - 12.7/90 (fitted for), helicopter deck |
| Electronic equipment | 2x radars |
| Complement | 17 |
Graphics

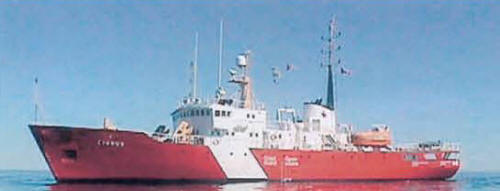

Cygnus 1999
Project history
Patrol ship of Department of Fisheries and Oceans. One Hurricane, one Avon Searider RIB and one workboat.
Modernizations
2000s: -2x radars; + Decca 2690, Decca BT502 radars
Naval service
No significant events.
