NAVYPEDIA


1992

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
PR001-020	Swiftships, Morgan City, USA: PR001-020	1987-1988: PR001-020	none	none	late 2000s: PR002-004, 006, 007, 010-020 late 2010s: PR008, 009 in service (2019): PR001, 005

Technical data

Displacement standard, t
Displacement full, t	12
Length, m	11.6
Breadth, m	3.81
Draught, m	1.00
No of shafts	2
Machinery	2 Stewart & Stevenson - General Motors 6V92MTA diesels
Power, h. p.	1100
Max speed, kts	33
Fuel, t	diesel oil
Endurance, nm(kts)	216(20)
Armament	2 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment	radar
Complement	4

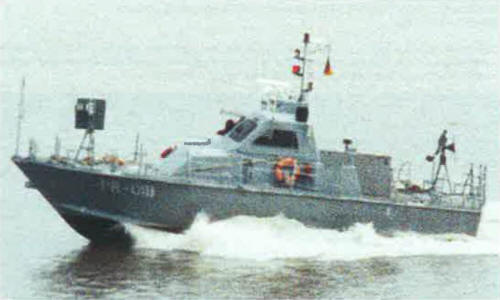

Graphics

Project history

Built for service on the Chad river. Aluminium construction. 10 more launches were built for Gendarmerie.

Modernizations

2002, all survived: diesels were replaced by 2 Cummins 6-cyl (900hp, 26kts)

Naval service

No significant events.
