VIPER torpedo boat (1896)

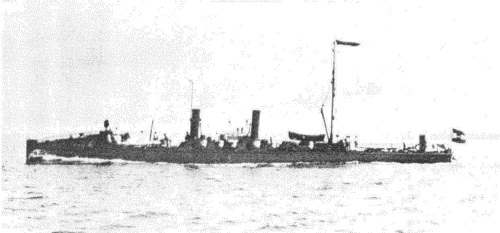

Viper 1902 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Viper, 1910- 17   1008 Yarrow, Cubitt Town, UK 1895 16.12.1895 10/1896 to France 1920


Technical data


Displacement normal, t

124
Displacement full, t
Length, m

45.0 wl
Breadth, m

4.50
Draught, m

2.30
No of shafts

1
Machinery

1 VTE, 2 Yarrow boilers
Power, h. p.

1900
Max speed, kts

25
Fuel, t

coal 30
Endurance, nm(kts)
Armament

2 x 1 - 47/30 SFK L/33 H, 3 x 1 - 450 TT
Complement

21


Standard scale images


<i>Viper </i>1896
Viper 1896


Graphics


<i>Viper </i>1902 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Viper 1902 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Yarrow-built TB.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
