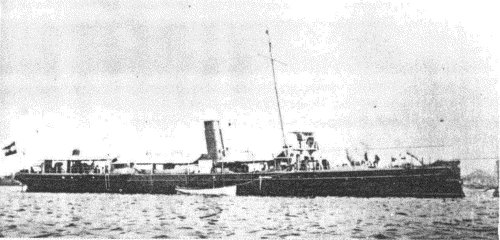

Planet 1904 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Planet		620	Palmer, Jarrow, UK	1888	25.6.1889	1890	minesweeper 1915, to Italy 1920

Technical data

Displacement normal, t	480
Displacement full, t	525
Length, m	67.1 wl 64.0 pp
Breadth, m	7.00
Draught, m	2.80
No of shafts	2
Machinery	2 VTE, 4 locomotive boilers
Power, h. p.	3500
Max speed, kts	19.6
Fuel, t	coal
Endurance, nm(kts)	1300(10)
Armament	2 x 1 - 66/37 SFK L/42 S, 8 x 1 - 47/40 SFK L/44 H, 1 - 450 TT (bow), 1 x 1 - 450 TT
Complement	84

Standard scale images

Graphics

Project history

Officially classified as "torpedo ship".

Modernizations

1915: + mechanical minesweeping gear

Naval service

No significant events.
