ROEBUCK BAY patrol boats (1999-2000)
Corio Bay 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Roebuck Bay | ACV01 | Austal, Henderson | 2/1999 | in service (2019) | |||
| Holdfast Bay | ACV02 | Austal, Henderson | 10/1999 | stricken 2015 | |||
| Botany Bay | ACV03 | Austal, Henderson | 16.9.1999 | stricken 2015 | |||
| Hervey Bay | ACV04 | Austal, Henderson | 2/2000 | to Sri Lanka 4.2014 (රත්නදීප [Rathnadeepa]) | |||
| Corio Bay | ACV05 | Austal, Henderson | 2/2000 | to Sri Lanka 6.2014 (මිහිකත [Mihikatha]) | |||
| Arnhem Bay | ACV06 | Austal, Henderson | 8/2000 | to Malaysia 2.2015 (Perwira) | |||
| Dame Roma Mitchell | ACV07 | Austal, Henderson | 8/2000 | to Malaysia 11.2015 (Satriya) | |||
| Storm Bay | ACV08 | Austal, Henderson | 8/2000 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 134 |
| Length, m | 34.8 pp 38.0 oa |
| Breadth, m | 7.30 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V2000 M70 diesels |
| Power, h. p. | 2860 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(20) |
| Armament | small arms |
| Electronic equipment | 2x Nucleus 2 5000 ARPA radars |
| Complement |
Graphics

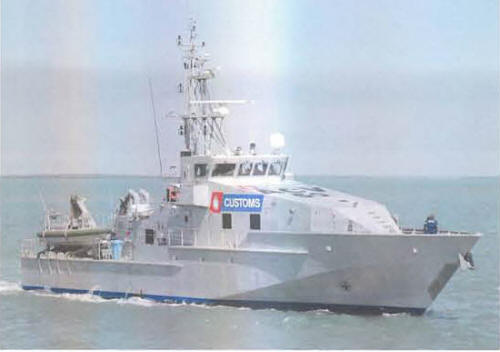

Corio Bay 2008
Project history
Customs. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
