MALU BAIZAM patrol boat (1996)
Malu Baizam 1996
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
2003 Malu Baizam |
Geraldton Boat Bldrs: 2003 |
5/1996: 2003 |
none |
none |
2006: 2003 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 85 |
| Length, m | 18.1 wl 20.0 oa |
| Breadth, m | 5.64 |
| Draught, m | 1.46 aft |
| No of shafts | 2 |
| Machinery | 2 MTU 8V183 TE diesels |
| Power, h. p. | 1300 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil 4.5 |
| Endurance, nm(kts) | 650(21) |
| Armament | small arms |
| Electronic equipment | JMA-3610 radar |
| Complement | 2 + 18 troops |
Graphics

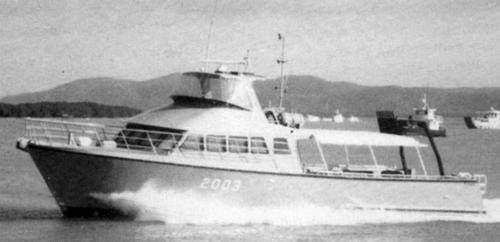

Malu Baizam 1996
Project history
Assigned to Thursday Island at the Torres Strait, carried three 4.2m inflatable dinghies for three 6-man patrols.
Modernizations
None.
Naval service
No significant events.
