SAN ANTONIO amphibious transport-docks (2006-)





San Antonio 2008

Ships


No Name Yard No Builder Laid down Launched Comm Fate
LPD17 San Antonio 2484 Northrop Grumman Ship Systems, Avondale 9.12.2000 12.7.2003 14.1.2006 in service (2019)
LPD18 New Orleans 2485 Northrop Grumman Ship Systems, Avondale 14.10.2002 11.12.2004 5.3.2007 in service (2019)
LPD19 Mesa Verde 2486 Northrop Grumman Ship Systems Ingalls, Pascagoula 25.2.2003 20.11.2004 15.12.2007 in service (2019)
LPD20 Green Bay 2487 Northrop Grumman Ship Systems, Avondale 7.8.2003 11.8.2006 24.1.2009 in service (2019)
LPD21 New York 2488 Northrop Grumman Ship Systems, Avondale 30.8.2004 19.12.2007 7.11.2009 in service (2019)
LPD22 San Diego 2631 Northrop Grumman Ship Systems Ingalls, Pascagoula 23.5.2007 7.5.2010 19.5.2012 in service (2019)
LPD23 Anchorage 2635 Northrop Grumman Ship Systems, Avondale 24.9.2007 12.2.2011 4.5.2013 in service (2019)
LPD24 Arlington 2665 Northrop Grumman Ship Systems Ingalls, Pascagoula 26.5.2008 23.11.2010 8.2.2013 in service (2019)
LPD25 Somerset 2606 Northrop Grumman Ship Systems, Avondale 11.12.2009 14.4.2012 1.3.2014 in service (2019)
LPD26 John P. Murtha 2614 Northrop Grumman Ship Systems Ingalls, Pascagoula 6.2.2012 30.10.2014 11.8.2016 in service (2019)
LPD27 Portland 2617 Northrop Grumman Ship Systems Ingalls, Pascagoula 20.5.2013 13.2.2016 14.12.2017 in service (2019)
LPD28 Fort Lauderdale   Northrop Grumman Ship Systems Ingalls, Pascagoula 13.10.2017 2020 2022 building (2019)
LPD29 Richard M. McCool Jr.   Northrop Grumman Ship Systems Ingalls, Pascagoula 2019 2022 2024 awarded (2019)


Technical data


Displacement standard, t

19208

Displacement full, t

25300

Length, m

200.00 wl 208.5 oa

Breadth, m

31.9

Draught, m

7.01

No of shafts

2

Machinery

4 Colt-Pielstick 16PC2.5 STC diesels

Power, h. p.

41600

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

8000(18)

Armament

2 x 21 RAM SAM (42 RIM-116A), 2 x 1 - 30/80 Mk 46 Mod. 2, 4 x 1 - 12.7/90, 2 - 4 tiltrotors or helicopters (2 CH-53E or 4 AH-1/UH-1 or 4 CH-46E or 2 MV-22B)

Military load

2 LCAC or 1 LCU or 4 LCM(8) or 20 LVTP, 2 LCPL, 1 LCVP, 700 troops, vehicles

Electronic equipment

2x SPS-73, SPS-48E, SPQ-9B radars, IRST, Mk 46 E/O directors, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC decoy RL, 2x Mk 53 Nulka decoy RL, SLQ-49 decoy launcher, SLQ-25 Nixie torpedo decoy, SLX-1 torpedo defence system, ICDS, JMCIS, GCCSM, NTCSS, AADS KSQ-1, CEC USG-2 CCS

Complement

364



Standard scale images

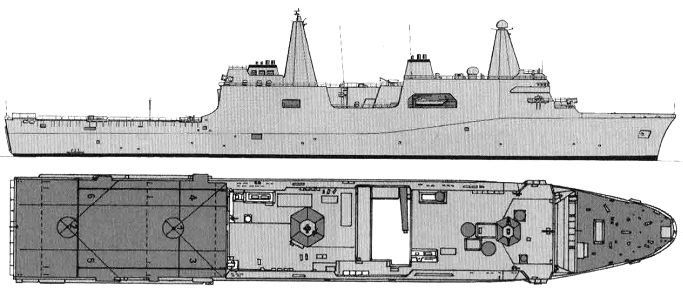

<i>San Antonio </i>2010
San Antonio 2010


Graphics

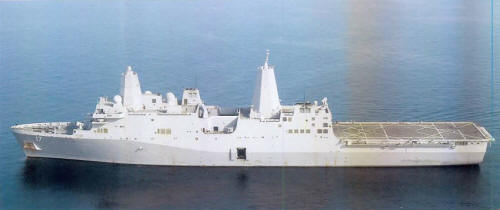

<i>San Antonio </i>2008
San Antonio 2008


Project history

The class replaced the LKAs, LPDs, LSD36 class and Newport class LSTs. Intended for 40-years service. The docking well is about the size (75x20m) of that on the LPD4 class and can accommodate 2 LCAC or 1 LCU and 14 amphibious assault vehicles. The two-part stern gate covers an opening 23.8m wide by 10.7m high. There are two spots for helicopters of up to CH-53E size. Three AH-1Z or four CH-46E or one CH-53E or two MH-22 can be accommodated in hangar, ship can also support AV-8B Harrier VSTOL attackers. Cargo vilume is 963m³ with 2323m² of vehicle space on three decks and 708m³ of palletized ammunition cargo space. Ship can also has 1007m³ cargo ammunition magazines and 1196m³ tanks for JP-5 aviation fuel and 38m³ for cargo gasoline. Medical facilities include 24 beds, two operating rooms and space for additional 100 casualties. The hull is shaped to reduce radar cross-section, which is said to be 1% of that of the LPD4. Can carry two 7m and one 11m RIB-type ship's boats, can also additionally carry two special forces RIBs.

All have ACDS (Advanced Combat Direction System) Block I, JMCIS (Joint Maritime Command Information System), KSQ-1 AADS amphibious assault direction system, Mk 2 Ship Self-Defence System (SSDS), Global Command Control System Maritime (GCCSM), Naval Tactical Command Support System (NTCSS), and the Integrated Combat Direction System (ICDS).

Modernizations

future: + MFEW ECM suite

Naval service

No significant events.
