SG80 patrol craft (1996-2013)
SG90 2008
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
| SG80 | Taşkizak NSY, Istanbul | 6.1996 | in service (2019) | ||||
| SG81 | Taşkizak NSY, Istanbul | 5.7.1996 | in service (2019) | ||||
| SG82 | Taşkizak NSY, Istanbul | 1996 | in service (2019) | ||||
| SG83 | Taşkizak NSY, Istanbul | 5.1997 | in service (2019) | ||||
| SG84 | Taşkizak NSY, Istanbul | 1997 | in service (2019) | ||||
| SG85 | Taşkizak NSY, Istanbul | 1998 | in service (2019) | ||||
| SG86 | Taşkizak NSY, Istanbul | 8.6.2000 | in service (2019) | ||||
| SG87 | Taşkizak NSY, Istanbul | 8.6.2000 | in service (2019) | ||||
| SG88 | Taşkizak NSY, Istanbul | 2002 | in service (2019) | ||||
| SG89 | Istanbul NSY | 2001 | in service (2019) | ||||
| SG90 | Taşkizak NSY, Istanbul | 2001 | in service (2019) | ||||
| SG91 | Taşkizak NSY, Istanbul | 2004 | in service (2019) | ||||
| SG92 | Taşkizak NSY, Istanbul | 2010 | in service (2019) | ||||
| SG93 | Taşkizak NSY, Istanbul | 2010 | in service (2019) | ||||
| SG94 | Taşkizak NSY, Istanbul | 2010 | in service (2019) | ||||
| SG95 | Taşkizak NSY, Istanbul | 2011 | in service (2019) | ||||
| SG96 | Taşkizak NSY, Istanbul | 2011 | in service (2019) | ||||
| SG97 | Taşkizak NSY, Istanbul | 2013 | in service (2019) | ||||
| KKSG01 | Taşkizak NSY, Istanbul | 2004 | in service (2019) | ||||
| KKSG02 | Taşkizak NSY, Istanbul | 2004 | in service (2019) |
Technical data
| Displacement standard, t | 180 |
|---|---|
| Displacement full, t | 200 |
| Length, m | 42.3 pp 44.9 oa |
| Breadth, m | 7.00 |
| Draught, m | 2.59 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V538 TB82 diesels |
| Power, h. p. | 4430 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2400(14) |
| Armament | 1 x 1 - 40/70 Bofors 315, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca radar |
| Complement | 32 |
Graphics

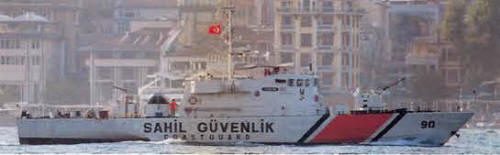

SG90 2008

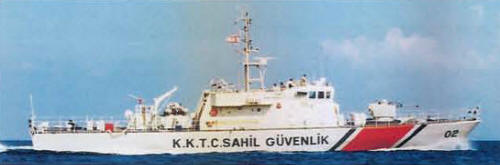

KKSG02 1994
Project history
More conventional hull form than the SG71 and SAR33 classes. A firefighting water monitor is mounted aft. KKSG01 and 02 were built for North Cyprus.
Modernizations
None.
Naval service
No significant events.
