KBV201 patrol craft (2001-2002)

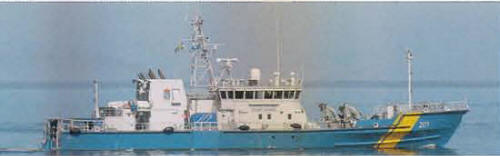

Kbv201 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Kbv201 | Kockums, Karlskrona | 10.2001 | in service (2019) | ||||
| Kbv202 | Kockums, Karlskrona | 25.1.2002 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 450 |
| Length, m | 50.0 pp 52.0 oa |
| Breadth, m | 8.60 |
| Draught, m | 2.80 |
| No of shafts | 2 |
| Machinery | 1 Deutz 16V620 diesel + 1 Deutz 12V616 diesel |
| Power, h. p. | 7070 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(16) |
| Armament | small arms |
| Electronic equipment | 2x radars |
| Complement | 9 |
Standard scale images
Kbv201 2010
Graphics
Kbv201 2007
Project history
Coast Guard. Class 'A'. Have spilled-oil recovery system with two storage tanks. High-speed RIB is launched via stern ramp.
Modernizations
none.
Naval service
No significant events.
