KBV301 patrol boats (1993-1998)
Kbv307 2007
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Kbv301 - 311 |
Djupviks, Tjörn/Rönnäng: Kbv301 Karlskronavarvet: Kbv302-311 |
1993: Kbv301 1995: Kbv302 1996: Kbv306 1997-1998: Kbv303-305, 307-311 |
None |
None |
2013: Kbv301 in service (2019): Kbv302-311 |
Technical data
| Displacement standard, t | 34 |
|---|---|
| Displacement full, t | 47 |
| Length, m | 20.0 |
| Breadth, m | 4.65 |
| Draught, m | 1.05 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V183 TE92 diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(25) |
| Armament | small arms |
| Electronic equipment | Furuno FR2011, Furuno FR7010 radars |
| Complement | 4 |
Graphics

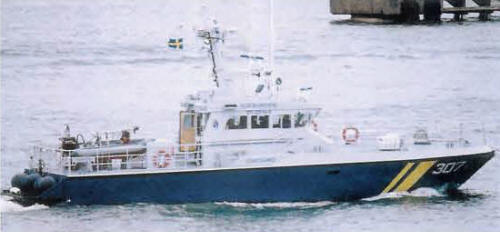

Kbv307 2007
Project history
Coast Guard. Aluminium hull.
Modernizations
none.
Naval service
no significant events.
