GOTLAND patrol ship (1990)

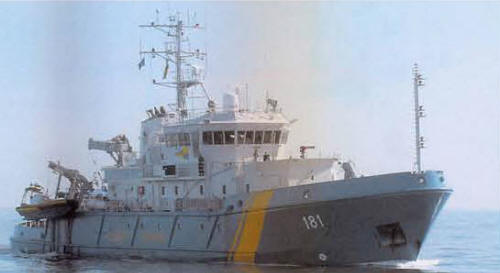

Gotland 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Gotland | Kbv181 | Rauma, Uusikaupunki, Finland | 30.11.1990 | in service (2019) |
Technical data
| Displacement standard, t | 800 |
|---|---|
| Displacement full, t | 1000 |
| Length, m | 49.8 pp 56.0 oa |
| Breadth, m | 10.2 |
| Draught, m | 4.50 |
| No of shafts | 2 |
| Machinery | 2 Wärtsilä 8R22 diesels |
| Power, h. p. | 3860 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2800(15) |
| Armament | 1 x 1 - 20/70 Mk 7 (fitted for) |
| Electronic equipment | Furuno 2830S radar, Subsea sonar |
| Complement | 11 |
Graphics
Gotland 2007
Project history
Flagship for Coast Guard and command vessel for SAR and oil-spill cleanup operations.
Modernizations
none.
Naval service
no significant events.
