TS-1 submarine (1943 / 1944)





TS-1 and TS-2 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
ТС-1 [TS-1] (ex-Requinul), 8.1947- Н-39 [N-39], 6.1949- С-39 [S-39]   929 Santieri Galati, Galatz, Romania 1938 4.5.1941 5.1943 // 9.1944 to Romania 8.1951 (Requinul)


Technical data


Displacement standard, t



Displacement normal, t

585 / 789

Length, m

58.0

Breadth, m

5.60

Draught, m

3.60

No of shafts

2

Machinery

2 MAN diesels / 2 Brown-Boveri electric motors

Power, h. p.

1840 / 860

Max speed, kts

17 / 8

Fuel, t

diesel oil

Endurance, nm(kts)7000(10) / 86(4)
Armament

1 x 1 - 88/42 SK C/35, 1 x 1 - 20/65 C/38, 6 - 533 TT (4 bow, 2 stern, 10)

Electronic equipmentpresumably GHG hydrophone
Complement

45

Diving depth operational, m110 (max)


Standard scale images


<i>TS-1</i> 1944
TS-1 1944


Graphics

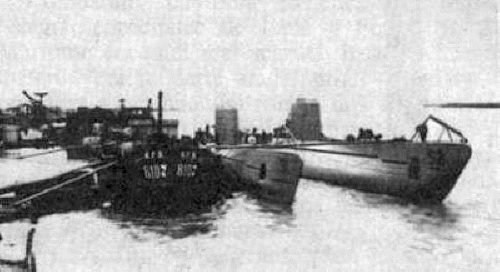

<i>TS-1</i> and <i>TS-2</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
TS-1 and TS-2 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former Romanian Requinul, 5.9.1944 captured by Soviet troops at Constanza and 14.9.1944 entered Soviet service as TS-1.

Modernizations

None.

Naval service

N-39 3.7.1951 was stricken and in August, 1951 returned to Romania under former name.

Many thanks to Wolfgang Stöhr for additional information on this page.
