SCHLANGE torpedo boats (1905 - 1906 / 1940)





Eidechse

Ships


Names Builders Commissioned Losses Transfers Discarding

(94) NO21 Schlange (ex-Ørn)

(100) NO22 Eidechse (ex-Lom)

Marinens Hovedverft, Horten, Norway: NO21 Schlange, NO22 Eidechse

1905 // 4.1940: NO21 Schlange

7.1906 // 6.1940: NO22 Eidechse

Schlange (16.4.1945)

Norway, 5.1945: Eidechse

 none


100 - 1000 t displacement/ BRT tonnage vessels


Names

(94) NO21 Schlange (ex-Ørn)

(100) NO22 Eidechse (ex-Lom)

Builders

Marinens Hovedverft, Horten, Norway: NO21 Schlange, NO22 Eidechse

Commissioned

1905 // 4.1940: NO21 Schlange

7.1906 // 6.1940: NO22 Eidechse

Losses

Schlange (16.4.1945)

Transfers

Norway, 5.1945: Eidechse

Discarding none


Technical data


Displacement normal, t

67
Displacement full, t

75
Length, m

36.2
Breadth, m

4.50
Draught, m

1.80
No of shafts

1
Machinery

1 VTE, 2 Thornycroft boilers
Power, h. p.

1000
Max speed, kts

23 (really ~17)
Fuel, t

coal 13
Endurance, nm(kts)
Armament

2 x 1 - 37/42 Hotchkiss, 1 DCR (6)
Complement

17 - 19


Standard scale images

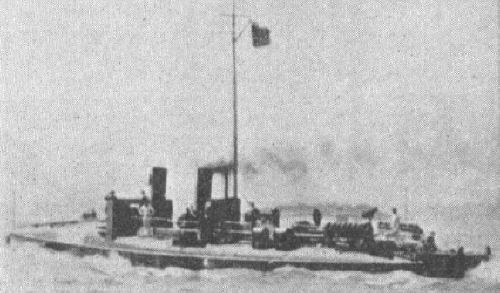

<i>nearly sister-ship Dristig</i> 1904
nearly sister-ship Dristig 1904


Graphics


<i> Eidechse</i>
Eidechse


Project history

ex-Norwegian torpedo boats, used as patrols. Both were captured 9.4.1940 at Horten.

Modernizations

None.

Naval service

Schlange deserted to Sweden 16.4.1945 and was transferred to Norway in May 1945. Eidechse was also returned to Norway in May, 1945.
