SMELYY destroyers (project 30bis) (1949 - 1953)





Sposobnyy

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Бдительный [Bditelnyy]   1101 445 61 Kommunar Yd, Nikolayev 10.6.1948 30.12.1948 25.10.1949 target 11.1960
Безудержный [Bezuderzhnyy]   1102 445 61 Kommunar Yd, Nikolayev 20.7.1948 31.3.1949 30.12.1949 target 11.1960
Буйный [Buynyy]   1103 445 61 Kommunar Yd, Nikolayev 15.4.1949 23.9.1949 29.8.1950 stricken 3.1986
Безупречный [Bezuprechnyy]   1104 445 61 Kommunar Yd, Nikolayev 15.7.1949 31.12.1949 9.9.1950 stricken 3.1975
Бесстрашный [Besstrashnyy]   1105 445 61 Kommunar Yd, Nikolayev 29.9.1949 31.3.1950 31.10.1950 target 8.1961
Боевой [Boevoy]   1106 445 61 Kommunar Yd, Nikolayev 21.12.1949 29.4.1950 19.12.1950 target 8.1961, later to Indonesia (Darmuda)
Быстрый [Bystryy]   1107 445 61 Kommunar Yd, Nikolayev 20.2.1950 28.6.1950 19.12.1950 stricken 7.1979
Бурный [Burnyy]   1108 445 61 Kommunar Yd, Nikolayev 18.5.1950 29.8.1950 4.6.1951 to Egypt 1.1962 (السويس [Suez])
Беспощадный [Besposhchadnyy]   1109 445 61 Kommunar Yd, Nikolayev 28.5.1950 30.9.1950 27.6.1951 to Egypt 1.1962-7/1968 (دمياط [Damiet]), stricken 2.1988
Безжалостный [Bezzhalostnyy]   1110 445 61 Kommunar Yd, Nikolayev 12.7.1950 30.12.1950 6.7.1951 to Indonesia 5.1964 (Brawidjaja)
Беззаветный [Bezzavetnyy]   1111 445 61 Kommunar Yd, Nikolayev 28.9.1950 30.3.1951 11.11.1951 to Indonesia 6.1959 (Sultan Iskandar Muda)
Бесшумный [Besshumnyy]   1112 445 61 Kommunar Yd, Nikolayev 31.10.1950 31.5.1951 30.11.1951 stricken 6.1979
Беспокойный [Bespokoynyy]   1113 445 61 Kommunar Yd, Nikolayev 16.1.1951 30.6.1951 21.12.1951 to Indonesia 6.1959 (Sandjaja)
Безбоязненный [Bezboyaznennyy]   1114 445 61 Kommunar Yd, Nikolayev 26.3.1951 31.8.1951 11.1.1952 target 8.1976
Безотказный [Bezotkaznyy]   1115 445 61 Kommunar Yd, Nikolayev 22.6.1951 31.10.1951 4.10.1952 stricken 4.1985
Безукоризненный [Bezukoriznennyy]   1116 445 61 Kommunar Yd, Nikolayev 29.7.1951 31.1.1952 30.9.1952 missile maintenance vessel 8.1961
Бессменный [Bessmennyy]   1117 445 61 Kommunar Yd, Nikolayev 12.9.1951 31.3.1952 10.12.1952 to Egypt 6.1968 (دمياط [Damiet])
Встречный [Vstrechnyy]   6 199 Yd, Komsomolsk-on-Amur 29.4.1948 20.5.1949 7.12.1949 target 9.1972
Ведущий [Vedushchiy]   9 199 Yd, Komsomolsk-on-Amur 31.7.1948 21.8.1949 26.12.1949 stricken 3.1975
Важный [Vazhnyy]   12 199 Yd, Komsomolsk-on-Amur 30.10.1948 4.9.1949 29.12.1949 stricken 3.1975
Вспыльчивый [Vspyl'chivyy]   13 199 Yd, Komsomolsk-on-Amur 15.2.1949 14.5.1950 30.9.1950 target 11.1960
Величавый [Velichavyy]   14 199 Yd, Komsomolsk-on-Amur 4.8.1949 14.5.1950 31.10.1950 target 9.1972
Вёрткий [Viortkiy]   15 199 Yd, Komsomolsk-on-Amur 5.11.1949 22.7.1950 14.12.1950 accommodation ship 10.1973
Вечный [Vechnyy]   16 199 Yd, Komsomolsk-on-Amur 12.1.1950 30.8.1950 15.12.1950 repair ship 11.1960
Вихревой [Vikhrevoy]   17 199 Yd, Komsomolsk-on-Amur 28.2.1950 15.9.1950 27.12.1950 stricken 6.1983
Видный [Vidnyy]   18 199 Yd, Komsomolsk-on-Amur 27.5.1950 17.5.1951 21.12.1951 missile maintenance vessel 8.1961
Верный [Vernyy]   19 199 Yd, Komsomolsk-on-Amur 15.7.1950 17.5.1951 26.12.1951 stricken 3.1981
Внезапный [Vnezapnyy]   20 199 Yd, Komsomolsk-on-Amur 23.9.1950 14.6.1951 28.12.1951 to Indonesia 2.1959 (Sawunggaling)
Внимательный [Vnimatelnyy]   21 199 Yd, Komsomolsk-on-Amur 31.10.1950 2.8.1951 26.12.1951 stricken 7.1986
Выразительный [Vyrazitelnyy]   22 199 Yd, Komsomolsk-on-Amur 14.12.1950 26.8.1951 29.12.1951 to Indonesia 11.1962 (Singamangaradja)
Волевой [Volevoy]   23 199 Yd, Komsomolsk-on-Amur 1.3.1951 11.9.1951 29.12.1951 to Indonesia 2.1959 (Siliwangi)
Вольный [Volnyy]   24 199 Yd, Komsomolsk-on-Amur 12.6.1951 4.6.1952 31.12.1952 stricken 12.1981
Вкрадчивый [Vkradchivyy]   25 199 Yd, Komsomolsk-on-Amur 14.7.1951 4.6.1952 31.12.1952 stricken 1.1979
Вдумчивый [Vdumchivyy]   26 199 Yd, Komsomolsk-on-Amur 5.11.1951 31.7.1952 31.12.1952 heating vessel 8.1976
Вразумительный [Vrazumitelnyy]   27 199 Yd, Komsomolsk-on-Amur 15.12.1951 3.9.1952 10.1.1953 stricken 2.1977
Смелый [Smelyy]   601 190 Zhdanov Yd, Leningrad 16.5.1948 29.9.1948 21.12.1949 target 11.1960
Стойкий [Stoykiy]   602 190 Zhdanov Yd, Leningrad 16.11.1948 1.2.1949 18.4.1950 stricken 2.1980
Скорый [Skoryy]   603 190 Zhdanov Yd, Leningrad 15.2.1949 14.8.1949 26.9.1950 to Poland 6.1958 (Wicher)
Суровый [Surovyy]   604 190 Zhdanov Yd, Leningrad 15.8.1949 1.10.1949 31.10.1950 stricken 2.1988
Сердитый [Serdityy]   605 190 Zhdanov Yd, Leningrad 22.12.1949 15.4.1950 20.12.1950 target 3.1975
Способный [Sposobnyy]   606 190 Zhdanov Yd, Leningrad 1.3.1950 30.4.1950 20.12.1950 to Poland 12.1957 (Grom)
Стремительный [Stremitelnyy]   607 190 Zhdanov Yd, Leningrad 15.5.1950 15.4.1951 4.7.1951 accommodation ship 6.1981
Сокрушительный [Sokrushitelnyy]   608 190 Zhdanov Yd, Leningrad 15.9.1950 30.6.1951 28.11.1951 heating vessel 7.1977
Свободный [Svobodnyy]   609 190 Zhdanov Yd, Leningrad 27.11.1950 20.8.1951 23.6.1952 stricken 1.1983
Статный [Statnyy]   610 190 Zhdanov Yd, Leningrad 1.3.1951 28.10.1951 4.8.1952 stricken 7.1982
Сметливый [Smetlivyy]   611 190 Zhdanov Yd, Leningrad 24.5.1951 17.11.1951 5.8.1952 to Egypt 6.1956 (دمياط [El Zaffer])
Смотрящий [Smotriashchiy]   612 190 Zhdanov Yd, Leningrad 21.6.1951 19.2.1952 4.11.1952 stricken 2.1978
Совершенный [Sovershennyy]   613 190 Zhdanov Yd, Leningrad 16.7.1951 24.4.1952 24.12.1952 stricken 3.1987
Серьёзный [Seryoznyy]   616 190 Zhdanov Yd, Leningrad 25.10.1951 13.7.1952 24.12.1952 stricken 3.1987
Солидный [Solidnyy]   617 190 Zhdanov Yd, Leningrad 4.1.1952 17.8.1952 31.12.1952 to Egypt 6.1956-7/1968 (رشيد [El Nasser]), stricken 4.1987
Степенный [Stepennyy]   618 190 Zhdanov Yd, Leningrad 11.2.1952 22.9.1952 11.2.1953 stricken 3.1986
Пылкий [Pylkiy]   619 190 Zhdanov Yd, Leningrad // 445 61 Kommunar Yd, Nikolayev 20.4.1952 31.7.1952 31.12.1952 to Indonesia 5.1964 (Diponegoro)
Огненный [Ognennyy]   178 402 Yd, Molotovsk 14.8.1948 17.8.1949 28.12.1949 stricken 12.1979
Отчётливый [Otchotlivyy]   179 402 Yd, Molotovsk 29.10.1948 14.9.1949 28.12.1949 repair ship 11.1960
Острый [Ostryy]   180 402 Yd, Molotovsk 21.12.1948 16.4.1950 25.8.1950 stricken 6.1983
Ответственный [Otvetstvennyy]   181 402 Yd, Molotovsk 11.6.1949 12.4.1950 31.8.1950 target 8.1961
Отменный [Otmennyy]   182 402 Yd, Molotovsk 8.10.1949 17.6.1950 6.11.1950 stricken 2.1978
Отрывистый [Otryvistyy]   183 402 Yd, Molotovsk 3.12.1949 25.8.1950 10.12.1950 stricken 2.1977
Отражающий [Otrazhayushchiy]   184 402 Yd, Molotovsk 3.3.1950 1.10.1950 17.12.1950 target 8.1961
Отрадный [Otradnyy]   188 402 Yd, Molotovsk 10.5.1950 30.12.1950 20.7.1951 stricken 3.1984
Озарённый [Ozarionnyy]   189 402 Yd, Molotovsk 6.7.1950 7.3.1951 28.7.1951 target 4.1978
Оберегающий [Oberegayushchiy]   190 402 Yd, Molotovsk 23.9.1950 11.5.1951 20.10.1951 stricken 3.1975
Охраняющий [Okhranyayushchiy]   191 402 Yd, Molotovsk 25.11.1950 26.7.1951 28.11.1951 stricken 2.1987
Осторожный [Ostorozhnyy]   192 402 Yd, Molotovsk 25.1.1951 25.9.1951 20.12.1951 stricken 12.1981
Окрылённый [Okrylionnyy]   193 402 Yd, Molotovsk 24.3.1951 17.10.1951 31.12.1951 stricken 12.1978
Отзывчивый [Otzyvchivyy]   194 402 Yd, Molotovsk 30.5.1951 29.12.1951 20.12.1952 stricken 7.1977
Отчаянный [Otchayannyy]   195 402 Yd, Molotovsk 25.8.1951 29.12.1951 25.11.1952 to Egypt 6.1968 (رشيد [El Nasser])
Опасный [Opasnyy]   196 402 Yd, Molotovsk 20.10.1951 1.6.1952 9.12.1952 stricken 3.1987
Оживлённый [Ozhivlionnyy]   197 402 Yd, Molotovsk 12.1.1952 4.8.1952 24.1.1953 target 8.1961-6/1965, stricken 6.1976
Ожесточённый [Ozhestochionnyy]   198 402 Yd, Molotovsk 3.4.1952 16.9.1952 14.3.1953 target 8.1961


Technical data


Displacement standard, t

2316

Displacement full, t

3066

Length, m

120.5

Breadth, m

12.0

Draught, m

4.26

No of shafts

2

Machinery

2 TV-6 geared steam turbines sets, 4 KV-30 boilers

Power, h. p.

60000

Max speed, kts

35.5

Fuel, t

oil

Endurance, nm(kts)2900(18)
Armament

6, 9, 12-14, 601-606, 1101, 1103: 2 x 2 - 130/51 B-2LM, 1 x 2 - 85/52 92K, 7 x 1 - 37/73 70K, 2 x 5 - 533 TT, 6 DCT, 2 DCR (50), 52 - 60 mines

1102, 1104-1117, 15-27, 607-613, 616-619, 178-184, 188-198: 2 x 2 - 130/51 B-2LM, 1 x 2 - 85/52 92K, 4 x 2 - 37/70 V-11, 2 x 5 - 533 TT, 6 DCT, 2 DCR (50), 52 - 60 mines

Electronic equipment

1101-1104, 1106-1116, 6, 9, 12-27, 619, 178-184, 188-194, 196-198: Giuys-1M, P-10, Rif-1, Rym-1, Redan, Vympel-2 radars, Tamir-5N sonar

601-611: Giuys-1M, P-10, Rif-1, Rym-1, Redan, Vympel-2, Redan-4 radars, Tamir-5N sonar

195: Giuys-1M4, P-10, Rif-1, Rym-1, Zalp, Vympel-2 radars, Pegas-2 sonar

1105: Giuys-1M, P-10, Rif-1, Rym-1, Zalp, Vympel-2 radars, Tamir-5N sonar

612, 613, 616-618: Giuys-1M, P-10, Rif-1, Rym-1, Zalp, Vympel-2, Zaria radars, Tamir-5N sonar

1117: Giuys-1M, P-10, Rif-1, Rym-1, Redan, Vympel-2 radars, Pegas-2 sonar

Complement

286



Standard scale images


<i>Stepennyy </i>1970s
Stepennyy 1970s
<i>Stremitelnyy </i>1960s
Stremitelnyy 1960s
<i>Vernyy </i>1979
Vernyy 1979


Graphics

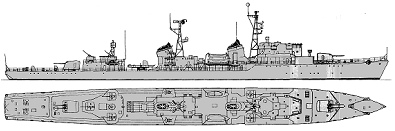

<i>Sposobnyy</i>
Sposobnyy

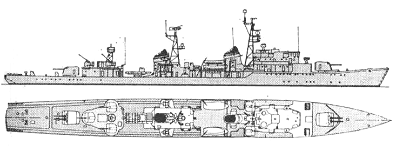

<i>Besshumnyy</i>
Besshumnyy


Project history

Work on this design began on 8 October 1945. The armament, machinery and basic arrangement of the earlier Project 30 were remained to speed construction, and the basic design was approved 28 January 1947. The TTZ called for a maximum speed of 36kts and an endurance of 3500nm at 15.5kts (the figures roughly matched those for 30K; Project 30 had been designed for 30kts and 4080nm at 16kts). Armament was as installed, except that the TTZ required triple torpedo tubes and six rather than seven single 37mm guns. This was the first Soviet longitudinally-framed completely welded hull. Compared to Project 30, it had a heavily reinforced hull, the changes adding nearly 50% to hull weight. To speed construction, ships were built in 101 prefabricated modular sections.

This design had higher freeboard than the earlier Projects 7-U and 30, but not enough to avoid taking water. For example, on trials flooding through the boiler air intakes limited Smelyy to 28kts in rough weather (she exceeded 36kts in smooth water). Many guns could not be operated. The turning circle (8.5 lengths) was considered excessive, and bilge keels were later fitted.

Modernizations

late 1950s, Bezzhalostnyy, Bezzavetnyy, Bespokoynyy, Boyevoy, Vnezapnyy, Volevoy, Vyrazitelnyy as project 30BK: - 1 x 2 - 85/52, 2 x 2 - 37/70, Giuys-1M, Rif-1 radars, Pegas-2 sonar; + 1 x 4 - 57/75 ZIF-75, Fut-N, Fut-B radars, GS-572 Gerkules sonar

1960, Ognennyy; 1961, Stremitelnyy, Okhraniayushchiy, Bezboyaznennyy, Besshumnyy, Vernyy, Vikhrevoy; 3.1962, Opasnyy as project 31: - 1 x 2 - 85/52, 4 x 2 - 37/70, 1 x 5 - 533 TT, 4 DCT, Giuys-1M, Rif-1, Redan (if installed) radars, Tamir-5N sonar; + 5 x 1 - 57/81 ZIF-71, 2 x 16 RBU-2500 Uragan-2 ASWRL, Fut-N, 2x Fut-B, Zalp-M2, Don radars, GS-572 Gerkules sonar, Bizan'-8, 3x Gafel' ECM suites 2600/3260t, 121.2m oa, 33kts, 3060(15.7)nm, compl. 288.

1960s, some ships: + 2 x 2 - 25/112 2M-3M

1960s, Smelyy: + P-8 radar

1960s, Bezuprechnyy: + Krab ECM suite

1963, Pylkiy as project 30T: minor changes

1967, Bessmennyy, Otchayannyy as project 30BA: - 1 x 2 - 85/52, 2 x 2 - 37/70, Giuys-1M, Rif-1 radars, Pegas-2 sonar; + 1 x 4 - 57/75 ZIF-75, 2 x 16 RBU-2500 Uragan-2 ASWRL, Fut-N, Fut-B, Don radars, GS-572 Gerkules sonar

1981, Besposhchadnyy as project 30BV: minor changes

1981, Solidnyy as project 30BV: - Zaria radar; + Yakor'-2 radar

Naval service

Otvetstvennyy was badly damaged 26.3.1957 after collision with cruiser Chapaev. Stremitelnyy was badly damaged 6.7.1962 in collision with destroyer Gremiashchiy off Kildin. Bezboyaznennyy was badly damaged by fire 29.12.1974. Sovershennyy was badly damaged by fire 2.3.11/1978.
