NYAYO fast attack craft (missile) (1987)





Nyayo 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Nyayo P3126   Vosper-Thornycroft, Portchester, UK 11.1984 20.8.1986 23.7.1987 in service (2020)
Umoja P3127   Vosper-Thornycroft, Portchester, UK 11.1984 5.3.1987 7.9.1987 in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Nyayo P3126   Vosper-Thornycroft, Portchester, UK 11.1984 20.8.1986 23.7.1987 in service (2020) Umoja P3127   Vosper-Thornycroft, Portchester, UK 11.1984 5.3.1987 7.9.1987 in service (2020)

Technical data


Displacement standard, t

300
Displacement full, t

360
Length, m

52.0 pp 56.7 oa
Breadth, m

8.20
Draught, m

2.10
No of shafts

4
Machinery

4 Paxman Valenta 18RP200CM diesels
Power, h. p.

17900
Max speed, kts

40
Fuel, t

diesel oil 45
Endurance, nm(kts)

2000(15)
Armament

2 x 2 Otomat Mk 2 SSM (4 Otomat Mk 2), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 30/90 GCM-A02, 2 x 1 - 20/90 GAM-B01
Electronic equipment

Decca AC1226, AWS-4, LIROD-423 (+e/o) radars, Cutlass-E, Cygnus ECM suites, 2x Barricade decoy RL, WSA423 CCS
Complement

40


Graphics

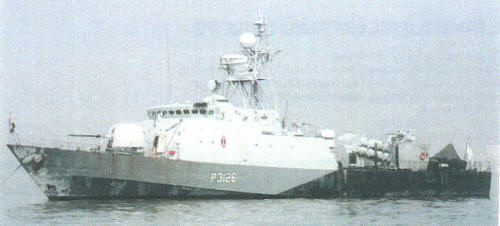

<i>Nyayo </i>2001
Nyayo 2001

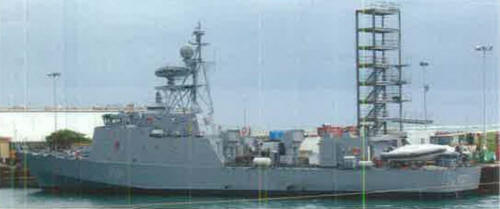

<i>Umoja </i>2011
Umoja 2011


Project history

Vosper 'Province' class.

Modernizations

2011, both: - 2 x 2 Otomat Mk 2 SSM, 1 x 1 - 76/62, 1 x 2 - 30/90, 2 x 1 - 20/90, Decca AC1226, LIROD-423 radars, WSA423 CCS; + 2 x 1 - 12.7/90, 2 x 1 - 7.6/90, Furuno FAR2827W radar, Medusa Mk 4B e/o system, CAAIS-450 CCS

Naval service

No significant events.
