KARATSU river gunboat (1928 / 1942)

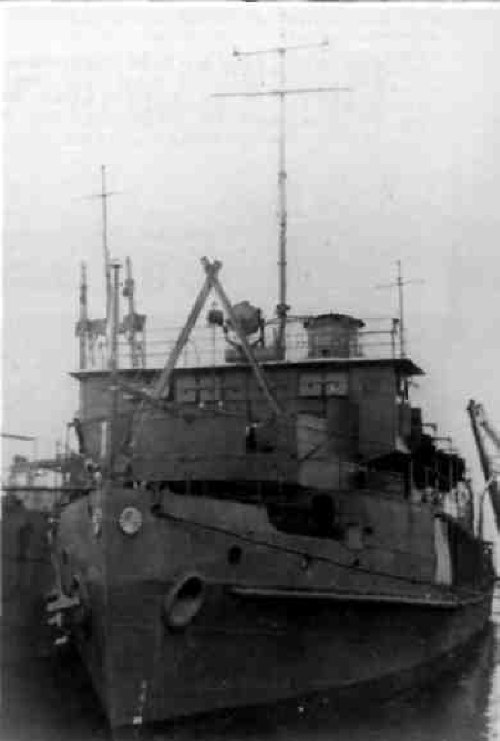

Karatsu

Ships


Name No Yard No Builder Laid down Launched Comp Fate
唐津 [Karatsu] (ex-Luzon)     Kiangnan Dock, Shanghai, China 11.1926 12.9.1927 6/1928 // 8.1942 sunk 3.2.1945


Technical data


Displacement standard, t

560

Displacement full, t



Length, m

60.0 wl 65.4 oa

Breadth, m

9.53

Draught, m

1.75

No of shafts

2

Machinery

2 VTE, 2 Thornycroft boilers

Power, h. p.

3150

Max speed, kts

16

Fuel, t

oil 173

Endurance, nm(kts)
Armament

2 x 1 - 76/40 11-shiki, 10 x 1 - 7.7/80

Complement

82



Standard scale images


<i> Karatsu</i>
Karatsu


Graphics


<i> Karatsu</i>
Karatsu


Project history

USN river gunboat Luzon was scuttled at Corregidor 6.5.1942, salvaged by Japanese, repaired and 1.8.1942 entered service as Karatsu.

Modernizations

None.

Naval service

3.3.1944 Karatsu was damaged by US submarine Narwhal and has sunk as result of earlier received damages at Manila 3.2.1945.
