GIOVANNI DENARO patrol craft (1998)

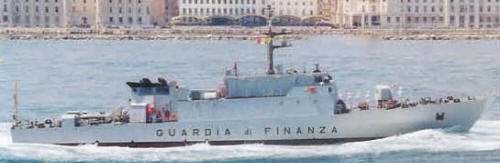

Giovanni Denaro 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Giovanni Denaro | P03 | Fincantieri, Muggiano | 14.11.1996 | 4.11.1997 | 20.3.1998 | in service (2019) |
Technical data
| Displacement standard, t | 320 |
|---|---|
| Displacement full, t | 340 |
| Length, m | 47.3 pp 51.0 oa |
| Breadth, m | 7.50 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 4 MTU 16V396 TB94 |
| Power, h. p. | 13000 |
| Max speed, kts | 34.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2700(15) |
| Armament | 1 x 2 -30/82 OTO-Breda, 2 x 1 - 7.6/90 |
| Electronic equipment | SPN-748, SPN-751 radars, Medusa, SVIR e/o detectors, IPN-10 CCS |
| Complement | 33 |
Standard scale images
Giovanni Denaro 2000
Graphics
Giovanni Denaro 2006
Project history
Ordered in 1995. Design based on the Antonio Zara class but with a more powerful propulsion plant. Has fin stabilizers, improved accommodations.
Modernizations
None.
Naval service
No significant events.
