CP2066 patrol boats (1979-1980)
CP2067
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP2066-2068 |
CN di La Spezia: CP2006-2008 |
1979: CP2066 1980: CP2067, 2068 |
none |
Iraq, 2006: CP2067 (P205), CP2068(P206) |
2006: CP2066 |
Technical data
| Displacement standard, t | 13 |
|---|---|
| Displacement full, t | |
| Length, m | 12.6 |
| Breadth, m | 3.58 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 AIFO 8V828M diesels |
| Power, h. p. | 690 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400 |
| Armament | none |
| Electronic equipment | none |
| Complement | 4 |
Graphics

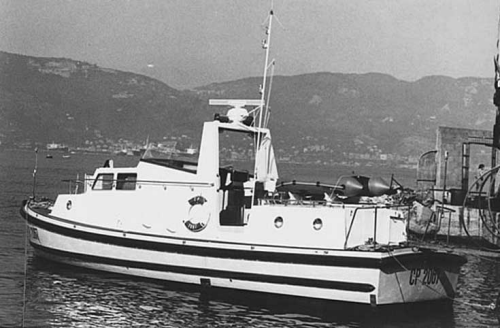

CP2067
Project history
Patrol launches of Coast Guard.
Modernizations
None.
Naval service
No significant events.
