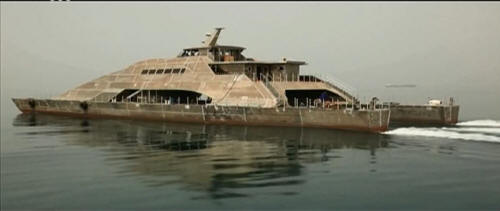

Shahid Mohammad Nazeri 2016

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
شهید محمد ناظری [Shahid Mohammad Nazeri]			Busher			9/2016	IRGC, in service (2019)

Technical data

Displacement standard, t
Displacement full, t	~800
Length, m	55.0
Breadth, m	14.0
Draught, m
No of shafts
Machinery	diesels
Power, h. p.
Max speed, kts	28
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 2 - 23/87 ZU-23-2, helicopter deck
Military load	100 troops
Electronic equipment	2x radars
Complement

Graphics

Project history

New unusual class of catamaran hull ship with very high arc between hulls (ship height is 23m). Helicopters can carry SSMs.

Modernizations

None.

Naval service

No significant events.
