619 patrol boats (1980s)

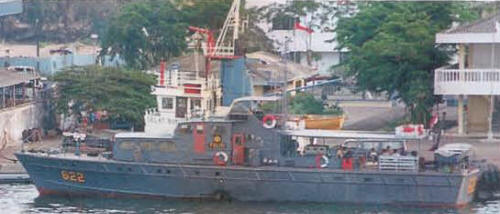

622 1995
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
619-625 |
PT PAL, Surabaya: 619-625 |
1980s: 619-625 |
none |
none |
in service (2019): 619-625 |
Technical data
| Displacement standard, t | 61 |
|---|---|
| Displacement full, t | 69 |
| Length, m | 26.0 wl 28.0 oa |
| Breadth, m | 5.40 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 2720 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1050(17) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 19 |
Graphics
622 1995
Project history
Patrol boats of FPB28 design.
Modernizations
None.
Naval service
No significant events.
