KANGEAN patrol boats (1987-1990)
1112 1998
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
1101-1118 |
PT Kabrick Kapal: 1101-1118 |
1987-90: 1101-1118 |
none |
none |
in service (2018): 1101-1118 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 45 |
| Length, m | 24.5 |
| Breadth, m | 4.30 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 2 - 25/80 2M-3M, 1 x 2 - 14.5/89 |
| Electronic equipment | radar |
| Complement |
Graphics

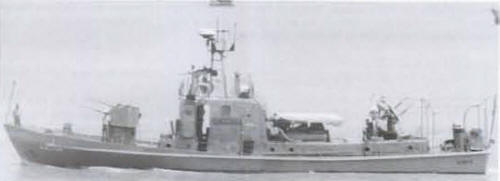

1112 1998
Project history
Built to use surplus Russian gunmounts removed from discarded ships.
Modernizations
None.
Naval service
No significant events.
