KATANPÄÄ mine countermeasures ships (2012-2016)

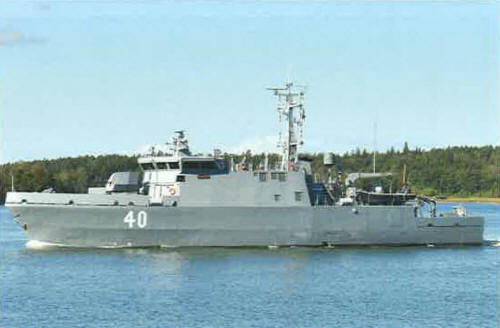

Katanpää 2014

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Katanpää 40   Intermarine, Sarzana, Italy 4/7/2007 16/6/2009 4/5/2012 in service (2019)
Purunpää 41   Intermarine, Sarzana, Italy 3/2008 26/8/2010 20/8/2013 in service (2019)
Vahterpää 42   Intermarine, Sarzana, Italy 2/2009 3/11/2011 2/11/2016 in service (2019)


Technical data


Displacement standard, t
Displacement full, t680
Length, m

52.4

Breadth, m

9.90

Draught, m

3.10

No of shafts

2 vertical cycloidal propellers

Machinery

2 MTU 8V396 TE74K diesels

Power, h. p.

2720

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)1600(12)
Armament

1 x 1 - 40/70 Bofors 315, 2 x 1 - 12.7/90, Sea Fox, Double Eagle Mk 2, REMUS 100, Hugin 1000MR USVs

Electronic equipmentFuruno radar, MSP-500 e/o system, HMS-12M, Klein 5000 sonars, IMCMS CCS
Complement

38



Standard scale images


<i>Katanpää </i>2015
Katanpää 2015


Graphics


<i>Katanpää </i>2014
Katanpää 2014


Ship project history


Based on the Italian Gaeta class. Planned building of third unit in Finland was cancelled and transferred to Italy. GRP hull, electric motors are used while minehunting.

Modernizations


None.

Naval service


No significant events.
