TELKKÄ Coast Guard patrol craft (1999-2004)
Tavi 2003
Ships
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
Telkkä |
|
Workboat Työvene, Uusikaupunki |
|
|
7/1999 |
in service (2019) |
|
Tavi |
|
Workboat Työvene, Uusikaupunki |
|
|
2002 |
in service (2019) |
|
Tiira |
|
Workboat Työvene, Uusikaupunki |
|
|
27.5.2004 |
in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement full, t | 400 |
| Length, m | 49.2 |
| Breadth, m | 7.50 |
| Draught, m | 3.70 max |
| No of shafts | 2 |
| Machinery | Telkkä: 2 Cummins-Wärtsilä 16V170 diesels others: 2 Wärtsilä 12V200 diesels |
| Power, h. p. | Telkkä: 5580 others: 6700 |
| Max speed, kts | Telkkä: 20.5 others: 22 |
| Fuel, t | diesel oil 44 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar, SONAC-PTA sonar |
| Complement | 8 + 12 passengers |
Graphics

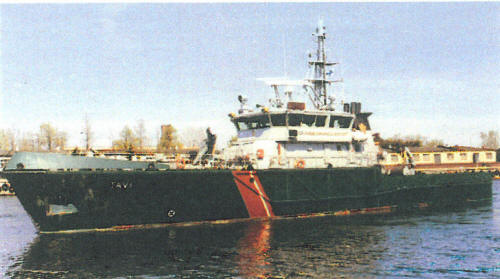

Tavi 2003
Project history
Steel hull with aluminium superstructure. Have oil-spill recovery equipment.
Modernizations
None.
Naval service
No significant events.
