DAPHNE patrol boats (1961-1965)

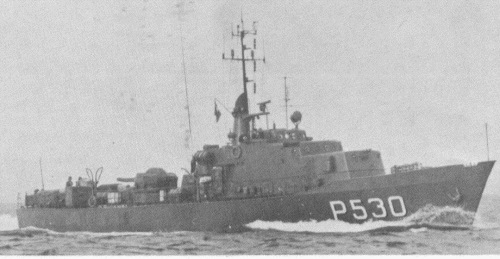

Daphne 1978 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Daphne P530 200 Orlogsværftets, København   10.11.1960 12.1961 stricken 6.1990
Dryaden P531 201 Orlogsværftets, København   1.3.1961 4.1962 stricken 7.1991
Havmanden P532 202 Orlogsværftets, København   16.5.1961 8.1962 stricken 1978
Havfruen P533 203 Orlogsværftets, København   4.10.1961 12.1962 stricken 2.1991
Najaden P534 204 Orlogsværftets, København   20.6.1962 4.1963 stricken 10.1991
Nymfen P535 205 Orlogsværftets, København   1.11.1962 10.1963 stricken 11.1991
Neptun P536 206 Orlogsværftets, København   29.5.1963 12.1963 stricken 10.1989
Ran P537 207 Orlogsværftets, København   10.7.1963 5.1964 stricken 3.1991
Rota P538 214 Orlogsværftets, København   26.11.1963 1.1965 stricken 10.1989


Technical data


Displacement standard, t

150

Displacement full, t170
Length, m

37.0

Breadth, m

6.80

Draught, m

2.60

No of shafts

3

Machinery

2 Maybach diesels + 1 Foden FD-6 diesel (cruising)

Power, h. p.

2600 + 100

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 40/70 Bofors 315, 2 DCR, mines

Electronic equipmentNWS-3 radar, PMS-26 sonar
Complement

23



Standard scale images


<i>Daphne </i>1965
Daphne 1965


Graphics


<i>Daphne </i>1978 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Daphne 1978 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Four were built under US Offshore Programme.

Modernizations

1980s, all survived: - NWS-3 radar; + 1 x 1 - 20/70 Mk 7, Terma 20T 48 Super radar

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
