BARSØ patrol boats (1969-1973)

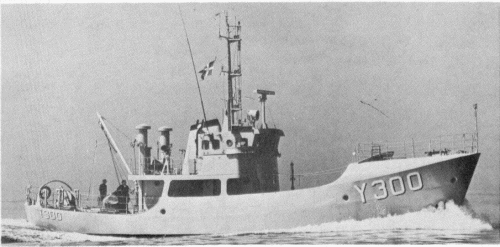

Barsø 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Barsø Y300   Svendborg Vaerft 2.1969 10.4.1969 5.1969 stricken 10.2008
Drejø Y301   Svendborg Vaerft 2.1969 26.4.1969 6.1969 stricken 10.2008
Romsø Y302   Svendborg Vaerft 4.1969 31.5.1969 7.1969 stricken 3.2007
Samsø Y303   Svendborg Vaerft 4.1969 14.6.1969 7.1969 stricken 2010
Thurø Y304   Svendborg Vaerft 6.1969 1.8.1969 8.1969 stricken 2010
Vejrø Y305   Svendborg Vaerft 6.1969 8.8.1969 9.1969 stricken 10.2006
Farø Y306   Svendborg Vaerft 10.1972 17.11.1972 2.1973 stricken 4.2008
Læsø Y307   Svendborg Vaerft 12.1972 12.1.1973 3.1973 stricken 10.2009
Rømø Y308   Svendborg Vaerft 1.1973 9.3.1973 3.1973 stricken 3.2009


Technical data


Displacement standard, t

147

Displacement full, t155
Length, m

25.5

Breadth, m

6.00

Draught, m

2.80

No of shafts

1

Machinery

1 Burmeister & Wain Alpha diesel

Power, h. p.

385

Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 20/70 Mk 7

Electronic equipmentNWS-3 radar
Complement

20



Standard scale images


<i>Barsø </i>1975
Barsø 1975


Graphics


<i>Barsø </i>1978
Barsø 1978


Project history

Rated as patrol cutters

Modernizations

mid-1990s, all: - 2 x 1 - 20/70, NWS-3 radar; + 1 x 1 - 12.7/90, FR-1505 radar

Naval service

No significant events.
