CUBAN NAVY (CUBA)

OTHER FIGHTING SHIPS

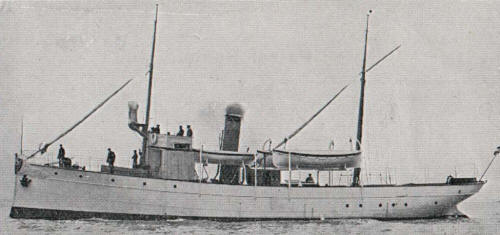

DIEZ DE OCTUBRE gunboats

Name No Builder Laid down Launched Comp Fate
Diez de Octubre   Cramp, Philadelphia, USA   1911 1911 discarded 1946
Veinte y Cuatro de Febrero   Cramp, Philadelphia, USA   1911 1911 discarded 1940



Displacement normal, t

218

Displacement full, t



Length, m

33.6

Breadth, m

6.10

Draught, m

2.40

No of shafts

1

Machinery

VTE, Babcock boilers

Power, h. p.



Max speed, kts

12

Fuel, t

coal 50

Endurance, nm(kts)



Armament

1 x 1 - 47/(40-50) Mk 1 - 11, 2 x 1 - 37/(20-50) Mk 2 - 11

Complement 39

Ship project history: Two boats of this class were ordered under the 1910 program.

Modernizations: 1917, both: - 2 x 1 - 37/(20-50); + 2 x 1 - 47/(40-50) Mk 1 - 11

Naval service: To 1940 9 de Octubre was in extremely shabby condition because of what she was disarmed and disengined.
