PATRIA gunboat (1911)





Patria 1930s

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Patria     Cramp, Philadelphia, USA   10.8.1911 1911 discarded 1955


Technical data


Displacement normal, t1100
Displacement full, t1200
Length, m

61.0 pp
Breadth, m11.0
Draught, m

4.00
No of shafts

2
Machinery2 VTE, Babcock boilers
Power, h. p.4000
Max speed, kts

16
Fuel, tcoal 150
Endurance, nm(kts)
Armament

2 x 1 - 57/40 Mk I/II, 4 x 1 - 47/40 Mk I/II, 4 x 1 - 37/40 Mk II/III
Complement115


Standard scale images


<i>Patria </i>1914
Patria 1914
<i>Patria </i>1952
Patria 1952


Graphics

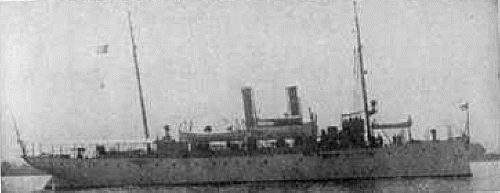

<i>Patria </i>1930s
Patria 1930s

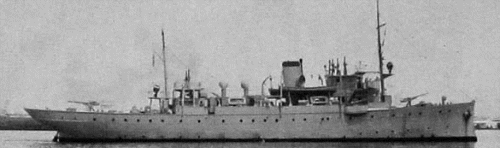

<i>Patria </i>1952
Patria 1952


Project history

Two-masted two-funneled seaworthy training ship ordered under the 1910 programme, actually represented the project off well proved during the Spanish-American war Machias class gunboat, adapted under Cuban requirements.

Modernizations

1917: - 4 x 1 - 37/40; + 2 x 1 - 57/40 Mk I/II

1942: boilers were converted to oil-firing; + 2 x 1 - 76/50 Mk 3.5.6, 1 x 1 - 76/52 Mk 10, 2 DCT

1945: - 2 DCT

Naval service

No significant events.
