CS11 motor patrol launches (1941-1942/1943)

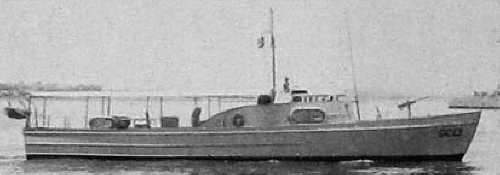

GC11 1951

Ships


Names Builders Commissioned Losses Transfers Discarding

CS11, 12 (ex-CG83316, 83317), 1945- CG11, 12

CS13, 14 (ex-CG83350, 83351), 1945- CG13, 14

CS21 - 23 (ex-CG83384-83386), 1945- CG21-23

CG24 (ex-CG83395), 1945- GC24

CS31 - 34 (ex-C56189-56192), 1945- GC31-34

Wheeler, Brooklyn, USA

1942 // 3.1943: CS11 - 14, 21 - 23

1943 // 3.1943: CS24, 31 - 34

None

None

1960s: GC12, 21 - 24, 31

1976: GC11, 13, 14, 32-34



Technical data


Displacement standard, t

45 trials

Displacement full, t



Length, m

25.3

Breadth, m

4.88

Draught, m

1.37

No of shafts

2

Machinery

2 petrol engines

Power, h. p.

1200

Max speed, kts

20.5

Fuel, t

petrol

Endurance, nm(kts)



Armament

1 x 1 - 20/70 Mk 4, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 4 DCR

Electronic equipmentmany boats: SO radar, sonar
Complement

10



Standard scale images


<i>CS11</i> 1945
CS11 1945


Graphics


<i>GC11 </i>1951
GC11 1951


Project history

Former USCG/USN 83ft-type patrol launches, transferred to Cuba by lend-lease 8 launches from USCG and 4 from US Navy. 10 boats were transferred at Havana 22.3.1943, two more 24.3.1943. Data about full correlation of American numbers with Cuban are not present, since in Cuban Navy they were renamed depending on tactical assuming, but former USN boats received numbers CS31-34.

Modernizations

None.

Naval service

Right after war all boats were transferred to Coast Guard, according to abbreviation replacement on GC.
