Type 722II air-cushion personnel landing craft (1989-1995)

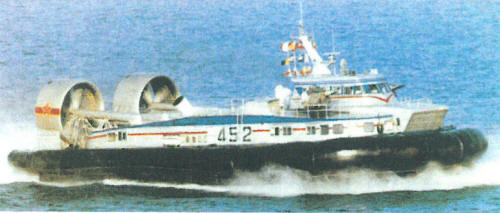

No452 1993
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
2 craft, inc. No452 |
Hudong SY, Shanghai: 2 craft | 1989-1995: 2 craft |
none |
none |
2016-2018: 2 craft |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 70 |
| Length, m | 22.0 |
| Breadth, m | 8.00 |
| Draught, m | - |
| No of shafts | 2 air propellers + 2 lift propellers |
| Machinery | 4 aircraft petrol engines (2 for propulsion, 2 for lift) |
| Power, h. p. | 5980 |
| Max speed, kts | 50 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armament | 2 x 2 - 14.5/93 |
| Military load | 15 t of cargo or 100 troops |
| Electronic equipment | none |
| Complement |
Graphics
No452 1993
Project history
Medium-sized LCAC, second version for series production.
Modernizations
None.
Naval service
No significant events.
