5. HAIGUAN 901 miscellaneous command ships (project P58A, 1990-1998)

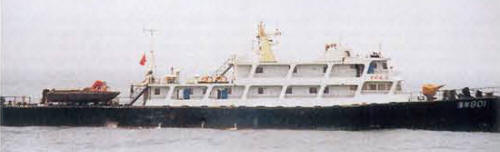

Haiguan 901 1993
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| [Haiguan 901] | 901 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 902] | 902 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 903] | 903 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 904] | 904 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 905] | 905 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 906] | 906 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s | |||
| [Haiguan 907] | 907 | Huangpu SY, Guangzhou | 1990-98 | auxiliary late 2010s |
Technical data
| Displacement standard, t | 400 |
|---|---|
| Displacement full, t | 435 |
| Length, m | 58.0 |
| Breadth, m | 7.60 |
| Draught, m | 2.20 |
| No of shafts | 4 |
| Machinery | 4 MTU 16V396 TB93 diesels |
| Power, h. p. | 8720 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(12) |
| Armament | 1 x 2 - 37/63 type 74, 2 x 2 - 14.5/93 |
| Electronic equipment | radar |
| Complement | 50 |
Graphics
Haiguan 901 1993
Project history
Flagships for Customs Force.
Modernizations
None.
Naval service
No significant events.
