6. HAIGUAN 801 patrol craft (1992-1999)

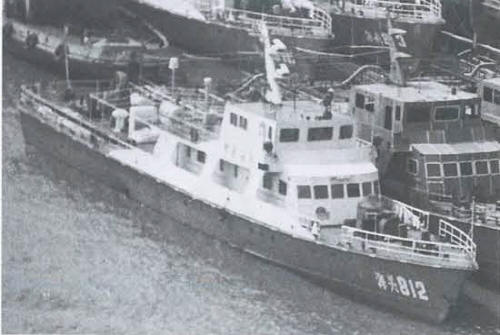

Haiguan 812 1993
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
[Haiguan 801 - 842] |
Shanghai: Haiguan 801-842 |
1992-1999: Haiguan 801-842 |
none |
none |
auxiliary late 2010s: Haiguan 801-842 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 98 |
| Length, m | 31.0 |
| Breadth, m | 4.70 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(10) |
| Armament | 2 x 2 - 14.5/93 |
| Electronic equipment | 2x Racal-Decca 1290 ARPA |
| Complement | 26 |
Graphics
Haiguan 812 1993
Project history
Large patrol boats, served under Customs flag.
Modernizations
None.
Naval service
No significant events.
