PL51 patrol craft (1992-1993/1997)
PL54 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| PL51 (ex-Protector) | 51 | Transfield ASI, South Coogee, Australia | 18.10.1992 // 1.7.1997 | in service (2019) | |||
| PL52 (ex-Guardian) | 52 | Transfield ASI, South Coogee, Australia | 18.1.1993 // 1.7.1997 | in service (2019) | |||
| PL53 (ex-Defender) | 53 | Transfield ASI, South Coogee, Australia | 4.3.1993 // 1.7.1997 | in service (2019) | |||
| PL54 (ex-Preserver) | 54 | Transfield ASI, South Coogee, Australia | 7.4.1993 // 1.7.1997 | in service (2019) | |||
| PL55 (ex-Rescuer) | 55 | Transfield ASI, South Coogee, Australia | 17.5.1993 // 1.7.1997 | in service (2019) | |||
| PL56 (ex-Detector) | 56 | Transfield ASI, South Coogee, Australia | 23.6.1993 // 1.7.1997 | in service (2019) |
Technical data
| Displacement standard, t | 148 |
|---|---|
| Displacement full, t | 170 |
| Length, m | 28.6 pp 31.5 oa |
| Breadth, m | 8.10 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516 diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(18) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Racal-Decca radar |
| Complement | 19 |
Graphics

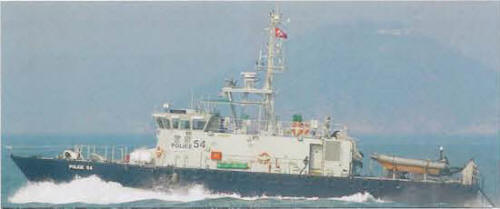

PL54 2007
Project history
Hong Kong police craft.
Modernizations
None.
Naval service
No significant events.
