SUTJESKA submarines (1960-1962)

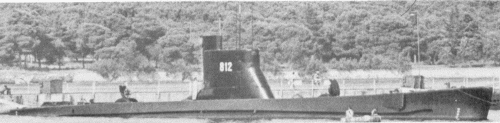

Neretva 1969 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Сутjеска [Sutjeska] П811 [P811] 221 Uljanik SY, Pula 1957 28.9.1958 16.9.1960 stricken 1987
Неретва [Neretva] П812 [P812] 222 Uljanik SY, Pula 1957 1959 1962 stricken 1987


Technical data


Displacement standard, t700
Displacement normal, t

820 / 945

Length, m

60.0

Breadth, m

6.60

Draught, m

4.80

No of shafts

2

Machinery

2 Sulzer diesels / 2 electric motors

Power, h. p.

1800

Max speed, kts

14 / 9

Fuel, t

diesel oil

Endurance, nm(kts)4800(8) /
Armament

6 - 533 TT (4 bow, 2 stern, 8)

Electronic equipmenthydrophone
Complement

38

Diving depth operational, m120


Standard scale images


<i>Sutjeska</i> 1970
Sutjeska 1970


Graphics


<i>Neretva </i>1969 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Neretva 1969 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

The first submarines designed and built in Yugoslavia.

Modernizations

early 1970s, both: new Soviet-built radar and sonar

Naval service

Since the early 1980s both were used for training.

Many thanks to Wolfgang Stöhr for additional information on this page.
